SY8035 QFN3x3-10
SY8035 内置MOS 5.5V/5A同步降压转换器
概述：
SY8035 is a high-efficiency 1 Mhz synchronous ste down DC-DC regulator IC capable of delivering up to 5A output current. SY8035 operates over a wide input voltage range from 2.7V to 5.5V and integrates the main switch and the synchronous switch with very low RDS(oN) to minimize the conduction losses
Low output voltage ripple and small external inductor and capacitor sizes are achieved with 1MHz switching frequency
特性：
Low Rds(oN) for internal switches(top/bottom) 45/35mΩ
Input voltage range: 2.7-5.5V
1 MHz switching frequency minimizes the external components
External adjustable softstart limits the inrush current
100% dropout operation
Power good indicator
RoHS Compliant and Halogen Free
Compact package: DFN3X3-10

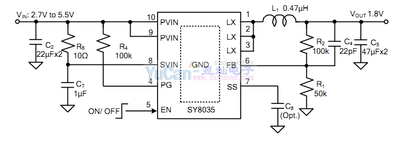

典型应用：
